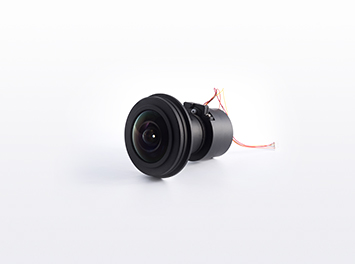

Ultra Wide Lens

  • PRODUCT
  • Ultra Wide Lens
No. Items Design Requests Notes
1 Sensor Type 1/1.7" Φ9.25 IMX226,12MP,1.85um
4,000*3,000 Pixels
2 Max Image Circle(mm) Φ9.45
3 Operation IRIS Fixed
Focus FF
4 Operation Temperature -20℃~+70℃
5 Lens Composition 8G
6 Mechanical Material Metal
Mount M18 * P0.5
7 Effective Focal Length(mm) 4.2
8 F/No. 1.38
9 Optical TTL(mm) 79.5
10 FFL(mm) 5.22
11 ICF+CG Thickness(mm) 0.8
12 Design Spectrum(nm) 436~656
13 Field of Angle(º) Diagonal 139.5
Horizontal 106
Vertical 77.7
14 Relative Illumination 61%
15 Optical Distortion -58.0%
16 CRAMAX 12 Deg
17 Resolution Center 200 lp/mm
0.7Field 160 lp/mm
